Thermostatic radiator valves (TRVs) control the temperature in individual rooms by automatically adjusting the flow of hot water or steam. This simple upgrade improves comfort and reduces energy costs. Installing a TRV is straightforward, and most people with basic DIY skills can complete the job in a few hours. Here’s an expert guide on how to install a thermostatic radiator valve.
What Is a Thermostatic Radiator Valve?
A thermostatic radiator valve regulates the heat output of a radiator by sensing the room’s temperature. When the space reaches the desired temperature, the valve reduces or halts the hot water or steam flow. This automatic adjustment prevents overheating and saves energy.
TRVs consist of two main parts: the valve body and the thermostatic head. The valve body connects to the radiator and controls the water flow. The thermostatic head contains a sensor that expands or contracts based on the room temperature, adjusting the valve accordingly.
Why Install a Thermostatic Radiator Valve?
Installing a TRV offers several benefits. You gain precise control over each room’s temperature, allowing you to heat only the spaces you use. This targeted heating reduces energy waste and utility bills.
TRVs also improve comfort by maintaining consistent temperatures. You won’t have to constantly adjust manual valves or deal with rooms that are too hot or too cold. The valves work automatically so that you can set your preferred temperature and forget about it.
Tools and Materials You’ll Need
Before you start, gather the necessary tools and materials:
- Adjustable wrench
- Pipe wrench
- Bucket or towels for catching water
- PTFE tape (plumber’s tape)
- New thermostatic radiator valve
- Radiator key (for bleeding the radiator)
Turn Off Your Heating System
Safety comes first. Turn off your heating system completely and allow it to cool. This step prevents burns and reduces the risk of scalding water spraying out when you disconnect the old valve.
Wait at least an hour after turning off the system to make sure all components can cool down. Check the radiator surface to confirm it’s cool to the touch before you proceed.
Drain the Radiator
Next, drain the water from the radiator. Locate the drain valve and attach a hose if possible, directing it to a bucket or exit area. Open the valve and allow all water to flow out.
If your radiator doesn’t have a drain valve, you can drain it by loosening the bleed screw at the top while opening the valve at the bottom slightly. Keep a bucket and towels handy to catch any spills.
A Note About Draining the Radiator
You must check whether your radiator has isolation valves on both the inlet and outlet. If it does, you can close the valves and drain only the single radiator. However, if there are no isolation valves, you must drain the entire heating system before removing the valve.
By not draining the full system, there may be ongoing water flow from other radiators and pipes, causing leaks or flooding. If you’re unsure about whether isolation valves are present, consult a professional for your safety and the job’s accuracy.
Remove the Old Valve
Once you drain the radiator, remove the old valve. You should use an adjustable wrench to loosen the union nut that connects the valve to the radiator. Hold the valve body steady with another wrench to prevent twisting the pipes.
After loosening the union nut, carefully separate the valve from the radiator. Some water may still drip out, so keep your bucket or towels handy. Set the old valve off to the side.
Prepare the New Thermostatic Radiator Valve
Inspect your new TRV and familiarize yourself with its components. Most valves come with installation instructions, so review them briefly.
Wrap PTFE tape around the threads of the valve tail (the part that screws into the radiator. Wind the tape clockwise, overlapping each layer slightly. This tape creates a watertight seal and prevents leaks.
Install the Valve Body
Screw the valve tail into the radiator by hand, then tighten it with a wrench. Be careful not to overtighten, as this can damage the threads or crack the radiator.
Next, connect the valve body to the pipework. Slide the union nut over the pipe, then position the valve body and hand-tighten the nut. Use wrenches to secure the connection, ensuring a firm but not excessive grip.

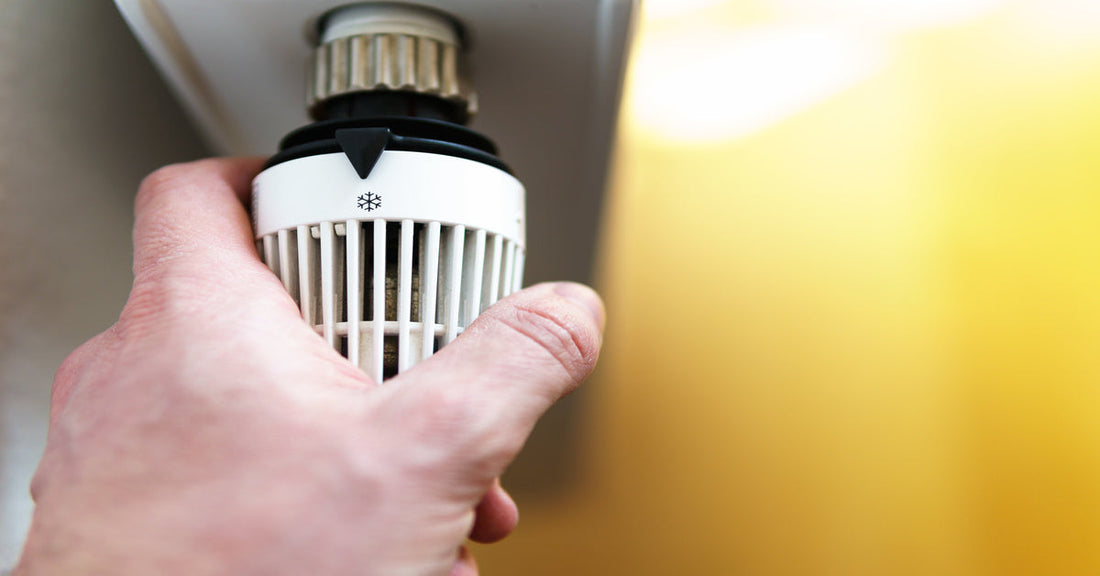

Attach the Thermostatic Head
With the valve body in place, attach the thermostatic head. Most heads simply clip or screw onto the valve body. Align the head properly and secure it according to the manufacturer’s instructions.
Set the thermostatic head to the desired temperature. Most TRVs have numbered settings, with higher numbers representing warmer temperatures. Start with a mid-range setting and adjust as needed once the system is running.
Refill and Bleed the Radiator
Close the drain valve and refill the radiator. Turn on your heating system and allow water or steam to flow back into the radiator. As it fills, air may become trapped inside.
Bleed the radiator to remove this air. Use a radiator key to open the bleed valve at the top of the radiator slightly. You’ll hear a hissing sound as air escapes. When water starts to drip out, close the bleed valve immediately.
Test the Valve
Once the radiator is full and bled, test the new TRV. Turn the thermostatic head to a high setting and check that the radiator heats up. Then turn it to a low setting and verify that the radiator cools down.
Listen for any unusual sounds, such as hissing or gurgling, which might indicate trapped air or a loose connection. Check all connections for leaks by inspecting them closely and feeling for moisture.
Adjust and Fine-Tune
After testing, adjust the TRV to your preferred temperature setting. Keep in mind that it may take some time for the valve to respond and for the room to reach the desired temperature.
Monitor the radiator’s performance over the next few days. If you notice any issues, such as inconsistent heating or leaks, double-check your connections and bleed the radiator again, if necessary.
Choosing Quality Radiator Valves
Selecting reliable radiator valves ensures long-lasting performance and efficiency. Look for valves designed for durability and smooth operation, even under demanding conditions. Quality valves are easy to install and adjust, reducing maintenance time and system downtime.
At Steam Warehouse, we offer dependable thermostatic radiator valves built to withstand strenuous use. Our products provide precise heat control, helping you maintain consistent temperatures across residential, commercial, and industrial settings. Whether you’re upgrading an existing setup or installing new equipment, our radiator valves deliver unmatched performance.
Get Started with Your Installation Today
Installing a thermostatic radiator valve is a manageable project that brings immediate benefits. You’ll enjoy better temperature control, lower energy bills, and improved comfort throughout your home or facility.
With the right tools, a bit of patience, and this guide, you can complete the installation in just a few hours. Follow each step carefully, and don’t hesitate to consult a professional if you encounter any difficulties. Your investment in a quality TRV will pay off in comfort and savings for years to come.
