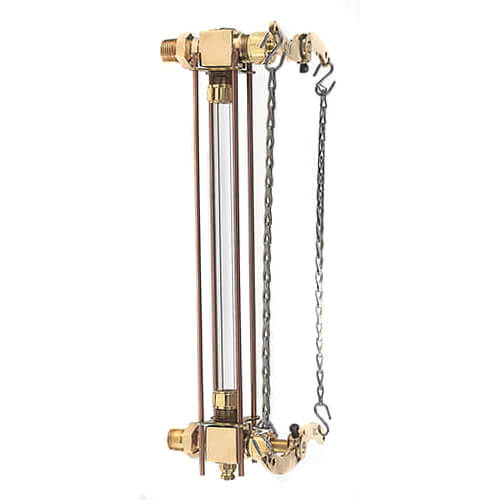

Lever on standard 12-foot chain allows operator to open and close valves that would be beyond reach. Valve stems operate on quarter-turns.
Features:
Rated 250 psig @ 400°F, 500 psig @ 100°F
Use on large boilers with inconvenient columns
Automatic and non-automatic models
Furnished with 12 feet of chain and 5/16" diameter full-blow valve with safety handle
High pressure glass standard with the 24 series
CRN Registered
Standard PTFE reinforced gauge glass gasket
Glass OD: 5/8"
Glass Length: 12"
Specifications
Height (in) 7.0
Width (in) 7.0
Depth (in) 22.0
Weight (lbs.) 7 lb
