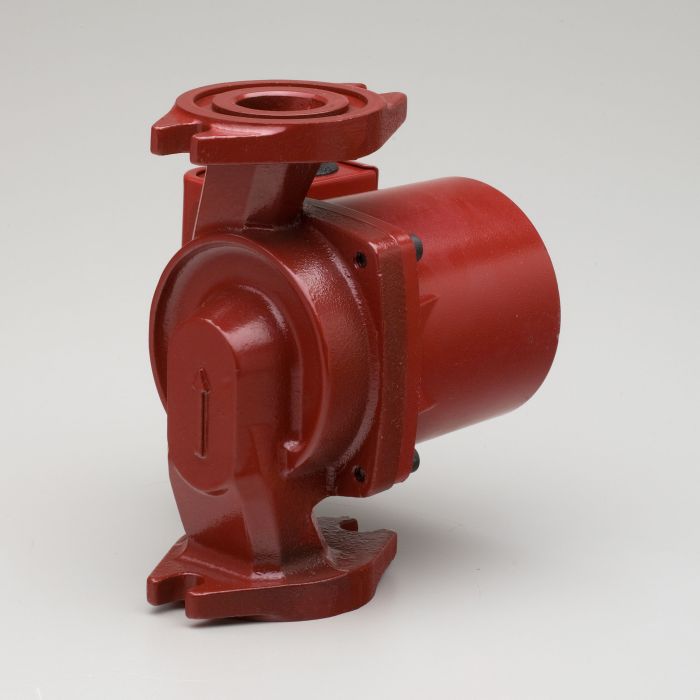

Bell & Gossett (103251) NRF-22 Pump 1/25hp Red Fox Circulator

103251 Bell Gossett NRF-22 Pump 1/25hp, 2940 rpm, Max Flow 22 gpm @ 15 feet of head. Companion flanges available in 3/4", 1", 1-1/4" and 1-1/2". Reliable, maintenance-free, whisper quiet wet rotor circulators designed for residential and light commercial hydronic heating systems.

Specifications

• Power Rating: 1/25 HP
• Pump Body Material: Cast Iron
• Electrical Rating: 115V
• Motor: 2940 RPM Full Speed
• Phase: Single
• Full Load Current: 0.8 Amp
• Thermal Protection: Impedance
• Face: 6 Inches
• Inlet/Outlet: Flanged
• Best Efficiency: 10 GPM @ 8 Feet of Head
• Feet of Head: @ 20 GPM 2
• Max. Operating Pressure: 150 PSI (10 bars)
• Max. Operating Temperature:
• Cast Iron Body: 240°F (115°C)
• Brass and Stainless Steel Body: 230°F (107°C)

Specs:

Part Number: 103251

Application: Heating

Voltage: 115V

Connection sizes: 3/4", 1" 1 1/4", 1 1/2"

RPM: 2940

Max temperature: 240f

Phase: 1

Hertz: 60

Material: Cast Iron

Max Pressure: 150 psi

Connection Type: Flanged x Flanged

Horsepower: 1/25

Flow Range (GPM): 0-22

Head Range (FT): 0-15
