Bell & Gossett (110197LF) F-3 Dual Unit Valve With Fast Fill Features

Bell & Gossett (110197LF) F-3 Dual Unit Valve With Fast Fill Features

  • SKU  110197LF
  • in stock

SALE ITEM Backordered
$288.20
$288.20
View full details
Product Information

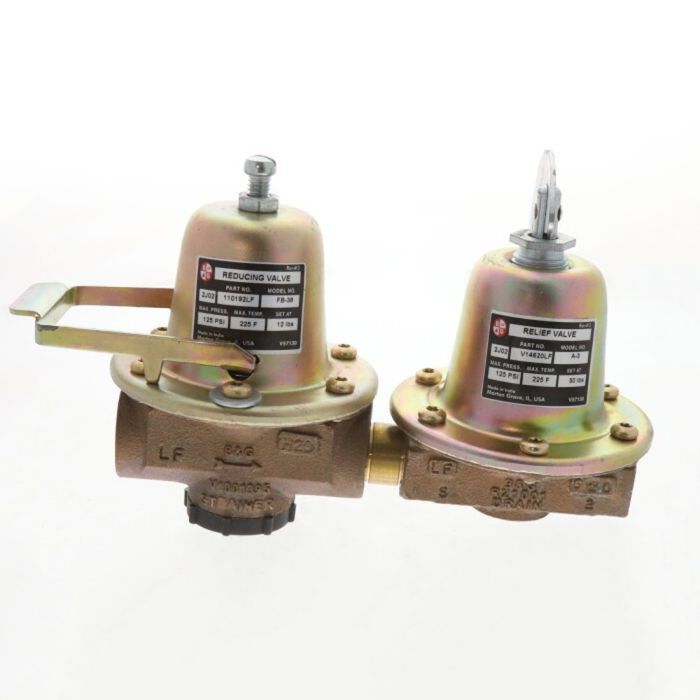

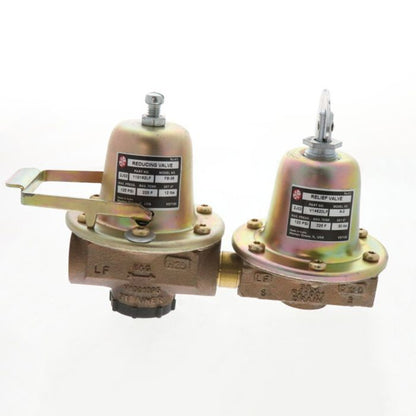

110197LF Bell & Gossett F-3 Dual Unit Valve With Fast Fill Features. Reducing Valve Set @ 12 PSIG and Relief Valve Set @ 30 PSIG. Reducing valves fill the system to a preset pressure for optimum performance. Combination Dual Unit Valves include pressure reducing valve and relief valve.

Part Number: 110197LF (REPLACES 110197)

Specs:

Max Inlet Pressure: 125 psi

Material: Brass

Size: 1/2"

Application: Heating

Connection: Threaded NPT

Max Temperature: 225F

Pressure Range: 20-40 psi

Specifications
Height (in) 4.0
Width (in) 8.5
Depth (in) 5.5
Weight (lbs.) 5 lb
