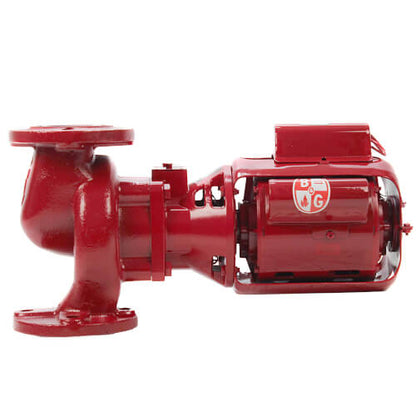

Bell & Gossett 2" NFI Circulator Pump, 1/6 HP (102214)

The Bell & Gossett Series 100 pumps are the pumps of choice for hydronic heating and domestic hot water circulation. Series 100's three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Model 2 NFI is oil lubricated with a 1/6 HP, 1725 RPM, 115v single phase motor. Includes pair of 2" flanges.

Operating Data

• 115v, 1/6 HP
• Maximum working pressure: 125 psi (8.6 bar)
• Maximum operating temperature
• Standard Seal: 225°F (107°C) continuous
• Special Seals: 250°F (121°C) continuous
• Applications: Reliable Circulators for Residential Heating Systems.

Specs:

Part Number: 102214

Application: Heating

Voltage: 115V

Horse Power: 1/6

Connection sizes: 2"

RPM: 1725

Max temperature: 225F

Phase: 1

Hertz: 60

Material: Cast Iron

Max Pressure: 125 psi

Flow Range (GPM): 0-75

Max Head: 10

Connection Type: Flanged x Flanged
