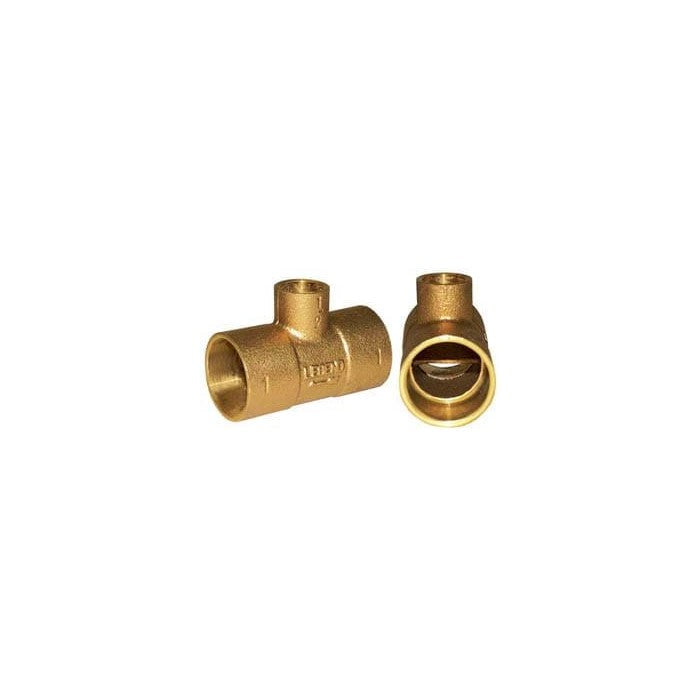

Cast Brass Monoflo Tee

The cast brass Legend T-569 monoflow tee is designed to partially divert water flow from a primary hydronic loop into a secondary loop, through a radiation device, and then returned back to the primary loop. The differential pressure created by these tees creates the flow.

Monoflow Tees divert flow of water from main line to branch line
and back again to main line.
Allows for a radiant system that does not require separate supply
and return piping for each unit.
Install in proper location and orientation to ensure efficient
operation of the heating system.
Not suitable for steam.
Max pressure and temperature may exceed that of PEX tubing.
Available in nominal sizes 3/4 x 1/2” – 1-1/4 x 3/4”.

Working Pressure, Non Shock (PSI)
Cold working pressure (CWP): 150 PSI
Max Temp: 200°F
