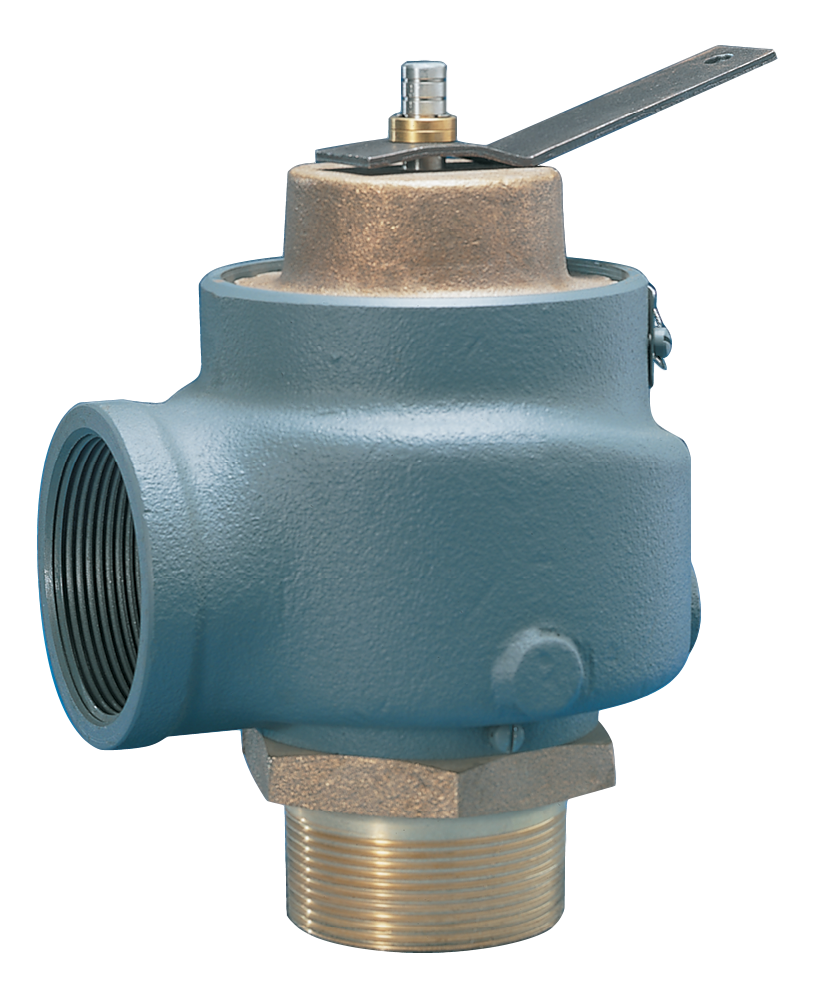

KUNKLE SAFETY VALVE 2.5X 2.5" LOW PRESSURE STEAM BOILER SECTION IV SAFETY VALVE AT 15 PSI. Product #930-J01-GC0015. Model 930.

USUALLY SHIPS WITHIN 3-5 Business Days

Nominal Size: 2.5" x 2.5"

Connections: MNPT x FNPT

Service: Steam ASME Section IV & XIII

Set Pressure: 15 PSIG

Body Material: Cast Iron

Trim Material: Bronze Nozzle, Disc & Guide

Inlet Size: 2.5" MNPT

Outlet Size: 2.5" FNPT

Max Pressure: 15 psig

Max Temperature: 250 deg F

Series :930

Standards and Approvals:  ASME Code IV & XIII Steam

FEATURES

• Extra high capacity for industrial,
commercial and residential low pressure
steam heating boilers.
• Cast iron body with bronze nozzle,
disc and guide.
• Large seat area/guide area ratio and disc
pivot design ensures optimum performance.
• Seats are lapped for optimum performance.
• Reversible lift lever for ‘pull-up’ or
‘pull-down’ manual testing.
• All adjustments factory sealed to prevent
tampering or disassembly.
• Tested and inspected for pressure setting
and leakage.

Application

Model 930 is suitable for use on low pressure steam heating boilers to ASME code sections IV and XIII at 15 psig set pressure
