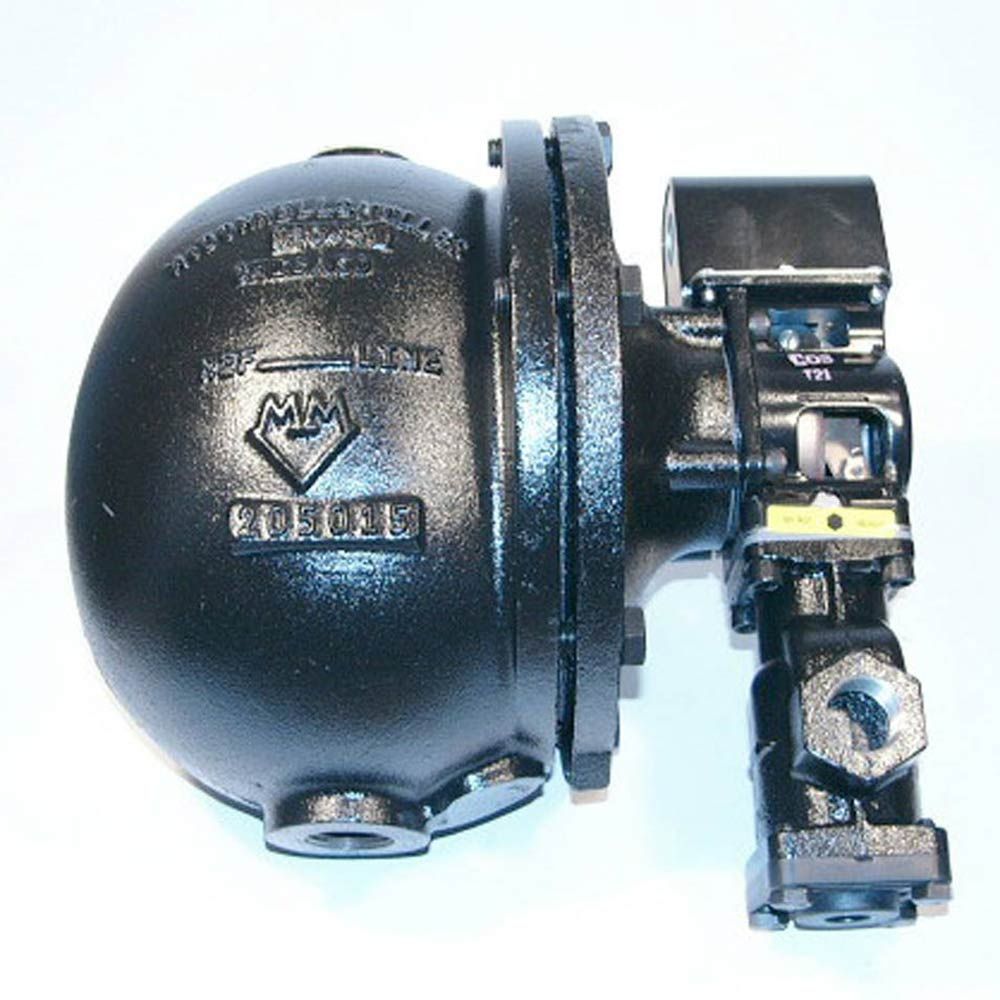

Model number 51-2 is a combination float-operated make-up water feeder and low water cut-off for low pressure steam or hot water boilers with a capacity larger than 5,000 square feet with a tapped 1" FIP connection. This unit features an automatic reset, a 120 volt number 2 cut-off switch, and continuous maintenance of minimum safe water level independent of electrical service. Its maximum water pressure is 150 psi and steam pressure is 35 psi.

Part Number : 135000

Model: 51-2

Details:

• Mechanical water feeder & low water cut-off
• Connection type: screwed
• Connection size: 1"
• Equipped with a No. 2 switch
• Quick-change replaceable cartridge valve and strainer
• Proportional feed action
• Maximum water supply pressure: 150 PSI (10.5 kg/cm²)
• Maximum inlet water temperature: 120° F (49° C)
• Maximum vessel pressure: 35 PSI (2.5 kg/cm²)
