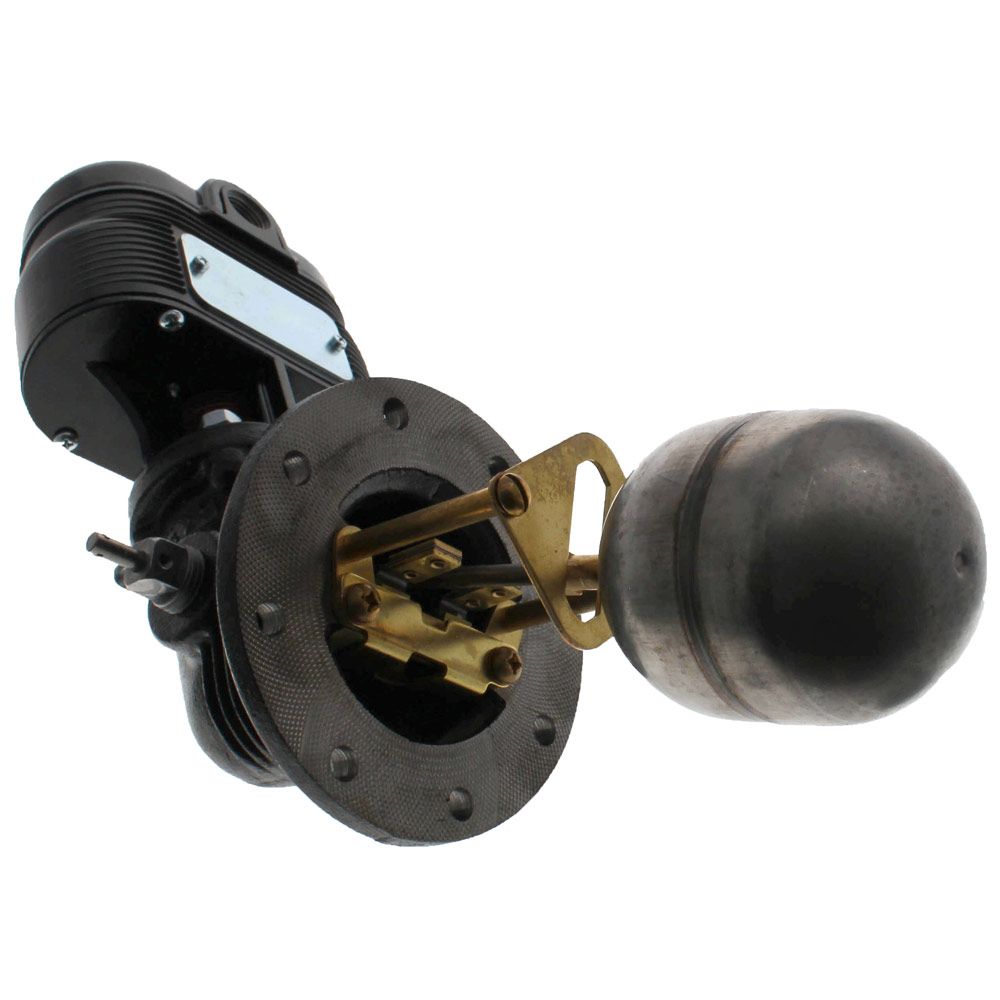

McDonnell Miller (162400) 93-HD Head Mechanism

SKU 162400
in stock
Backordered

SALE ITEM Backordered

$2,798.00

Product variants

Product Information

Model number 93-HD is a head mechanism, with standard number 5 switch, for model number 93 and 193 controls. Head mechanisms include everything except a float chamber. They allow for quick and easy replacement by removing the bolts on the float chamber and then removing and replacing the new unit, with no need to disrupt piping.

Part Number: 162400

Model: 93-HD

Details

Head mechanism only
Connection type: screwed
No. 5 Switch included
For commercial and industrial low or high pressure steam boilers
Maintains consistent water level regardless of pressure
Water column with integral tappings for gauge glass and tri-cock installations
Maximum pressure 150 PSI (10.5 kg/cm2)
Magnetic repulsion eliminates need for bellows
Model #: 162400

Specifications

Weight (lbs.) 15.8 lb

Shipping & Return

Our shipping rates depend on delivery location as well as the size and weight of the item. Shipping will be calculated during the checkout process.

In you would like to return a product, you must first contact one of Customer Service Specialists for a Return Authorization. All return shipments must be prepaid by the customer. Made-to-order or custom products are non-returnable and non-refundable. Please note that there is a restocking fee for all returns.

PDF Guides

SERIES_93.pdf 93-HD_and_94_HD_Replacement_Installation_Manual.pdf 93_94_193_194_REPLACEMENT_HEAD_MECHANISM_INSTRUCTION_MANUAL_210417_mm-413i.pdf SLIDE_WIRE_REPLACEMENT_INSTRUCTION_MANUAL_replacement-slide-wire-resistor-and-wiper-arm-7b-1r-for-installation-on-7b-or-7b-m-switch-assemblies-mm-709e.pdf 93_193_94_194_GUIDELINES_mm-405a.pdf 93_94_193_194_REPLACEMENT_FLOAT_INSTRUCTION_MANUALmm-713b.pdf mcdonnell-miller-service-parts-catalog.pdf
