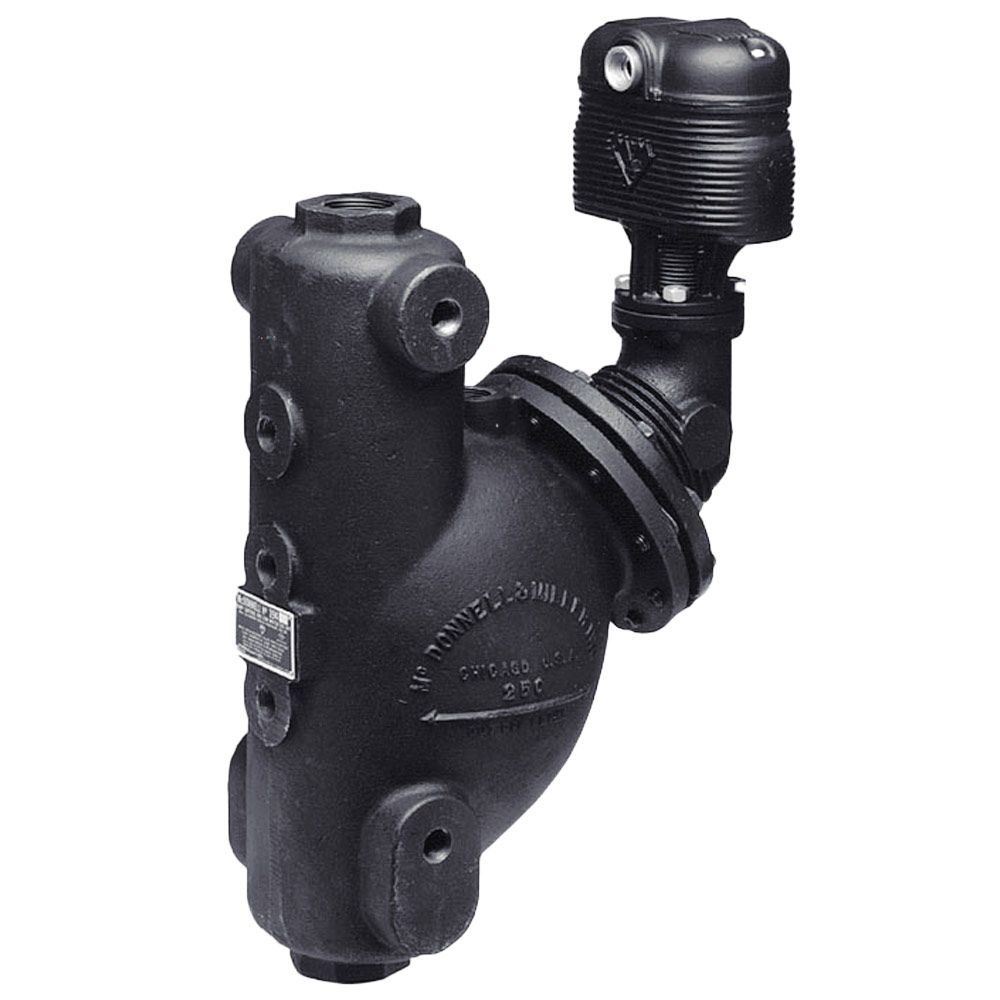

McDonnell Miller (166600) 194 Low Water Cut-Off & Pump Controller
McDonnell Miller (166600) 194 Low Water Cut-Off & Pump Controller
- SKU 166600
- in stock
Couldn't load pickup availability
Model 194 combination low water cut-off and pump controller with automatic reset (No. 5 Switch) for steam boilers with pressures up to 250 psi. This standard model has 1-1/4" NPT connections with 1/2" NPT column connections for the water gauge valves and compression gauge cocks.
Overview
- Maintains consistent water level regardless of pressure
- Water column with integral tappings for gauge glass and tri-cock installations
- For boilers of any steaming capacity
- No. 5 Switch included
- Magnetic repulsion eliminates need for bellows
For commercial and industrial low or high pressure steam boilers.
Optional features
- Manual reset
- 7B switch (135ohm proportional control signal) to maintain constant boiler water level
- 1″ NPT connections
- Maximum pressure 150 psi (10.5 kg/cm2) – Series 93/193
- Maximum pressure 250 psi (17.6 kg/cm2) – Series 94/194
