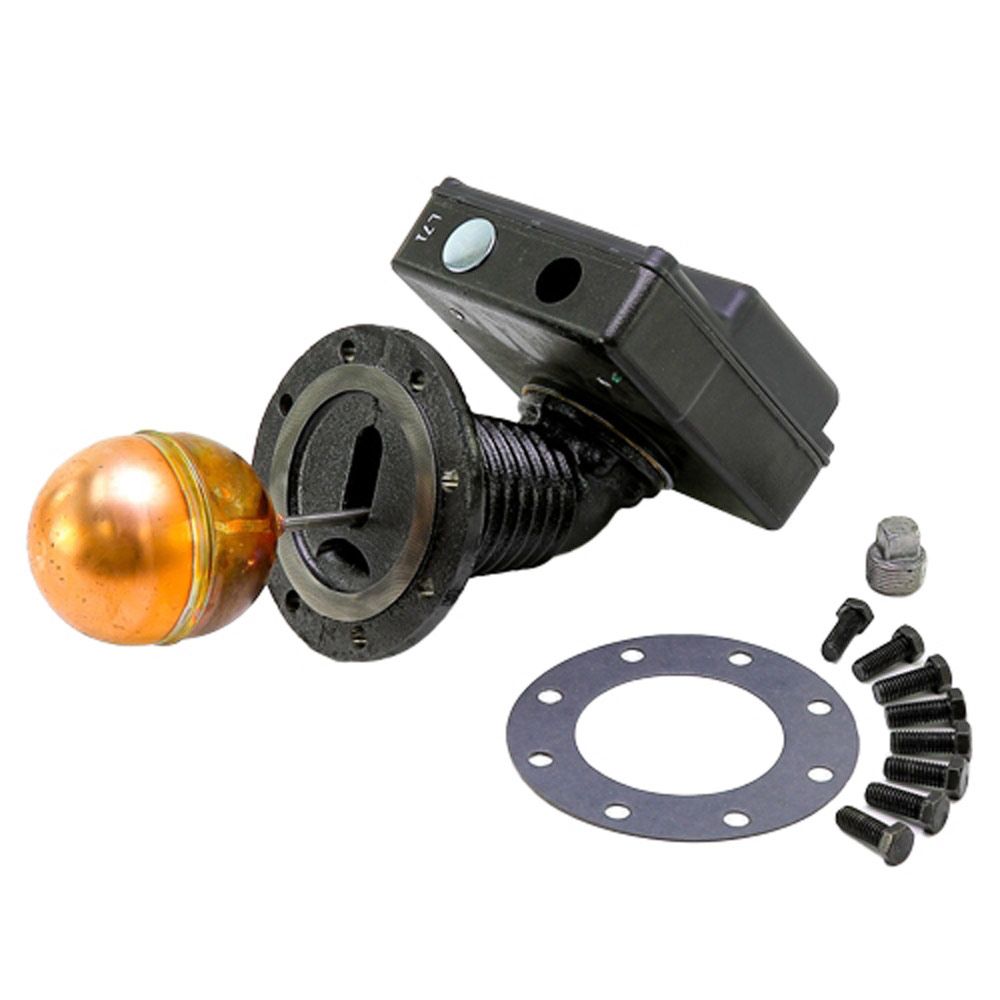

McDonnell Miller (173003) 150S-HD Head Mechanism with Automatic Reset

SKU 173003
in stock
Backordered

SALE ITEM Backordered

$1,697.00

Product variants

Product Information

Model 150S-HD replacement head mechanism with snap-action switch assembly repairs Series 150S and Series 157S low water cut-off pump controllers for steam boilers. Replacement head mechanisms can be installed without disturbing existing equalizing connections or disassembly of components, making repair simple and easy.

Part Number: 173003

Model: 150S-HD

Details:

Head mechanism only
For commercial and industrial low or high pressure boiler applications
Monel bellows provides corrosion resistance
Snap action switches for high temperature service
1 Single pole, single throw switch for pump control
1 Single pole, double throw switch for low water cut-off and alarm actuation
Maximum pressure: 150 PSI (10.5 kg/cm2)
Model #: 173003

Specifications

Height (in) 7.0

Width (in) 3.0

Depth (in) 16.5

Weight (lbs.) 10.16 lb

Shipping & Return

Our shipping rates depend on delivery location as well as the size and weight of the item. Shipping will be calculated during the checkout process.

In you would like to return a product, you must first contact one of Customer Service Specialists for a Return Authorization. All return shipments must be prepaid by the customer. Made-to-order or custom products are non-returnable and non-refundable. Please note that there is a restocking fee for all returns.

PDF Guides

150S-hd_Replacement_Head_Installation_Manual.pdf mcdonnell-miller-general-catalog.pdf mcdonnell-miller-service-parts-catalog.pdf 150_HEAD_GASKET_210328_mm-412f.pdf 150_REPLACEMENT_BELLOWS_ASSEMBLY_INSTRUCTION_MANUALseries-150-150s-157-157s-bellows-replacement-mm-711e.pdf 150_REPLACEMENT_HEAD_MECHANISM_210343_mm-219.pdf 150_REPLACEMENT_SNAP_SWITCH_INSTRUCTION_MANUALmm-235h.pdf 157S_Parts_Breakdown.pdf
