McDonnell Miller (144705) FPC-1000-P Low Water Cut-Off with Manual Reset & Standard Probe
McDonnell Miller (144705) FPC-1000-P Low Water Cut-Off with Manual Reset & Standard Probe
- SKU 144705
- in stock
Couldn't load pickup availability

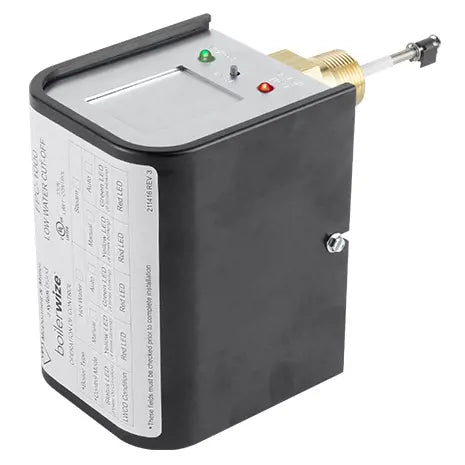

The McDonnell & Miller 144705 model FPC-1000-P (WITH PROBE) (boilerwize) is a universal, field-configurable electronic low water cut-off with the standard probe. It is field-configured for 24-volt, 120-volt, automatic, or manual operation for steam and hot water boilers. The boilerwize probe type low water cut-off uses patented technology to monitor changes in water conductivity. When it exceeds the defined parameters, the decision to turn off the burner is made based on the volatility/variability of the resistance readings. This patented technology provides the best protection without turning off the burner unless there is a low water condition. As an added safety measure, the control will turn off the burner if it recognizes an out-of-water condition when it exceeds the sensitivity threshold.
Part Number:144705
Model: FPC-1000-P
How it works:
The FPC-1000 uses patented technology to monitor changes in water conductivity. When defined parameters are exceeded, the device makes a decision to turn off the burner based on the volatility/variability of the resistance readings. This patented technology provides the best protection possible without turning off the burner unless low water condition exists. As an added measure of safety, the control will turn off the burner if it recognizes an out-of-water condition when the sensitivity threshold is exceeded.
- Easy Field Configurable Control
- Patented Self-Cleaning Probe
- Tri-Function Button
- Condition Indicator
- Easy, Leak-Free Installation
- Field Configurable Control – easily configure the FPC-1000 for 24V, 120V, auto or manual control for steam or hot water boilers. It’s also an easy replacement for ALL electronic LWCO on the market.
- Patented Self-Cleaning Probe – a proprietary self-cleaning feature on the probe minimizes scale build-up and extends recommended cleaning intervals to every five (5) years instead of annually.
-
Tri-Function Button - a standard offering allowing:
- Push-to-Test – quickly and easily test the control to make sure it’s operating properly without draining boiler.
- Manual Reset – easily reset the control when the probe is configured as Manual Reset.
- Configuration – easily select the desired configuration.
- Condition Indicator – multifunction LEDs indicate when a unit is powered on at auto mode (green), manual mode (yellow), and when a low water condition is detected (red) for easy visual confirmation of system status.
- Easy, Leak-Free Installation – the metal-to-metal seal provided by the brass threads ensures leak-free installations. Wrench flats and easy access wiring simplify installation.
This model replaces previous model number 751P-MT-120 #176234
