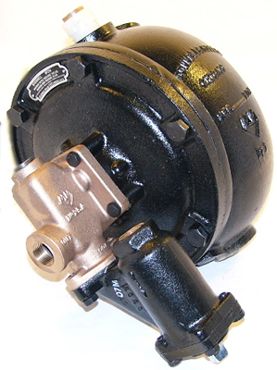

McDonnell Miller (126800) Model 25-A Water Feeder

McDonnell Miller (126800) Model 25-A Water Feeder

  • SKU  126800
  • in stock

SALE ITEM Backordered
$2,488.20
$2,488.20
View full details
Product Information

Model number 25A is a float-operated make-up water feeder for boiler receiver tanks with a tapped 1" FIP supply and 1" FIP equalizing connections. This water feeder features proportional feed action, a maximum water supply pressure of 100 psi and an operating pressure of 35 psi.

Part Number : 126800

Model: 25A

Overview


Product Features
  • For boiler receiver tanks
  • Float operated
  • Proportional feed action
  • Soft seat provides positive seal
  • Seal between float chamber and valve chamber is not a positive seal
  • Maximum water supply pressure 100 psi (7 kg/cm2)
  • Maximum inlet water temperature 120°F (49°C)
  • Maximum vessel pressure 35 psi (2.5 kg/cm2)
Specifications
Height (in) 10.38
Width (in) 12.25
Weight (lbs.) 37.5 lb
Shipping & Return

Our shipping rates depend on delivery location as well as the size and weight of the item. Shipping will be calculated during the checkout process.

In you would like to return a product, you must first contact one of Customer Service Specialists for a Return Authorization. All return shipments must be prepaid by the customer. Made-to-order or custom products are non-returnable and non-refundable. Please note that there is a restocking fee for all returns.

PDF Guides
25A_LIQUID_LEVEL.pdf 25A_Instruction_Manual.pdf 25A_VALVE_STEM_ASSEMBLY_INSTRUCTION_MANUAL.pdf mcdonnell-miller-service-parts-catalog.pdf
