Schott Duran Gauge Glass 5/8" OD Red Line High Pressure

Schott Duran Gauge Glass 5/8" OD Red Line High Pressure

  • SKU  5/8 X 12 HPRL
  • in stock

SALE ITEM Backordered
$43.67
$43.67
View full details
Product Information

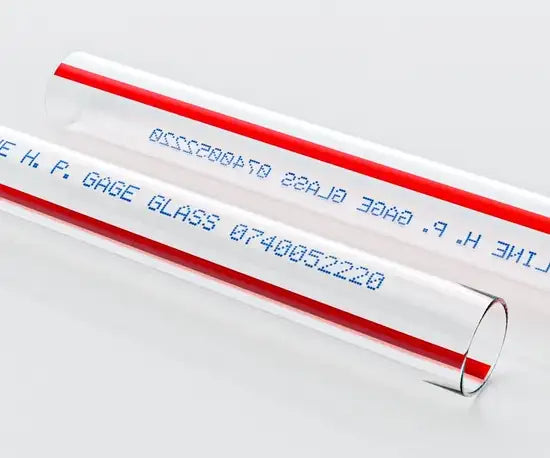

Red Line

One of the key benefits of Red Line Gage Glasses is the convenience they offer operators in viewing liquid levels from a distance. The red stripe produces an optical effect that makes the liquid level easy to determine.

CHARACTERISTICS

The Red Line variant offers similar benefits to SCHOTT’s other gage glasses, and can be produced in a range of lengths from 8-24 inches. It offers corrosion resistance up to higher temperatures than the Standard variant, and is a popular choice for use in tanks and reservoirs, as well as low-pressure boilers. A fire polish finish also enhances the safety attributes of the tubing, sealing any small cracks in the end wall and reducing the chance of fractures or unwanted blemishes that might affect performance.

ADVANTAGES

  • Easy and convenient viewing of liquid levels from a distance.
  • Wide range of diameters and lengths available.
  • Improved corrosion resistance enhancing long-term reliability.
  • Fire-polished finish optimizes safety and consistency.

Applications (Correct Type of Glass should be selected for different applications)

Tanks and reservoirs

Often referred to as sight glass, Tubular Gage Glass plays an essential role in tanks and reservoirs, offering a simple and efficient way to view liquid levels. Fitting between the upper and lower gage glass valves, the Red Line variant features a red line shaded with white lines to make levels easier to measure.

High and low pressure boilers

The outstanding thermal endurance of SCHOTT Tubular Gage Glasses, along with their strong transparency and reliable performance at high temperatures, make them ideal for liquid measurement in boilers. Molded into transparent tubes, rods, cylinders, or oil cups, our gage glasses enable the operators of high or low pressure boilers to safely and accurately observe the levels inside the appliance.
Specifications
Height (in) 0.63
Width (in) 12.0
Depth (in) 0.63
Weight (lbs.) 0.15 lb
