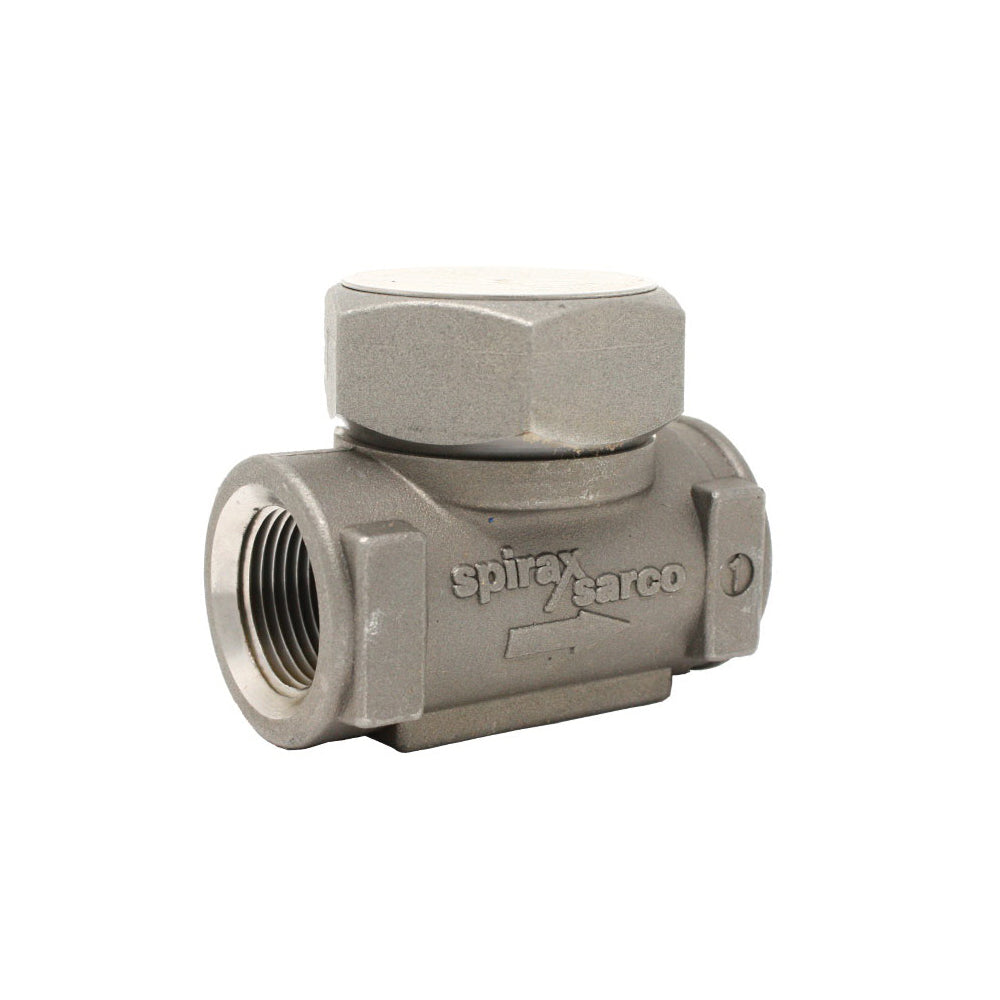

Spirax Sarco 1" NPT TDC Thermo-Dynamic Steam Trap, Stainless Steel

IN STOCK: USUALLY SHIPS WITHIN 1-2 DAYS

OUT OF STOCK: APPROX 2-3 WEEKS

1" in NPT TDC Thermo-Dynamic Steam Trap, Stainless Steel

Spirax Sarco TDC Thermodynamic Steam Traps are Stainless Steel thermodynamic steam traps with integral seat designs that include a hardened disc and seating surfaces. These traps periodically cycle to discharge condensate very near to steam temperature, and they have a three-hole balanced discharge TDC Series Steam Traps are unaffected by water hammer or superheat.

Part# 70010

DETAILS/SPECIFICTAIONS:

Brand: Spirax Sarco

Steam Trap Type: Thermo-Dynamic

Model: TDC

Steam Trap Connection Size: 1" NPT

Max Operating Pressure: 600 psi

Max Allowable Pressure: 600 psig/up to 800°F

Max Allowable Temperature: 800°F/0-600 psig

Part Number: 70010

Body Material: Stainless Steel

Steam Trap Mounting: FNPT

Typical Applications:
Steam main drainage and tracer lines, process equipment,
laundry and kitchen equipment, superheated steam applications, outdoor installations subject to freezing.

Item Features

• Minimum pressure for satisfactory operation is 3.5 psig
• Maximum back pressure should not exceed 80% of the inlet pressure under any conditions of operation, otherwise the trap may not shut
• 600 psig at 800 deg F Maximum allowable pressure
• 800 deg F at 0 to 600 psig Maximum allowable temperature
• Inline horizontal piping configuration
