Spirax Sarco 2" FT-30 (30PSI) Float and Thermostatic Steam Trap (Copy)

IN STOCK: USUALLY SHIPS WITHIN 1-2 DAYS

OUT OF STOCK: APPROX 2-3 WEEKS

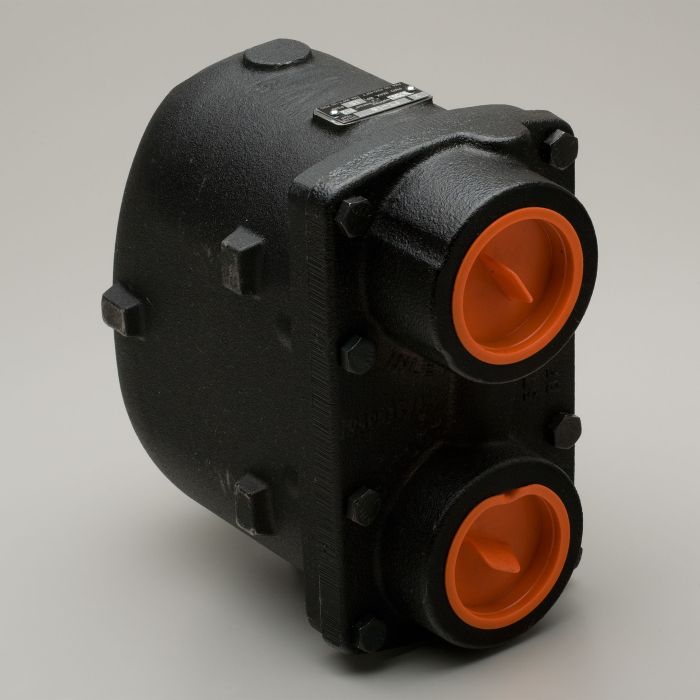

2 NPT FT-30 Float & Thermostatic Steam Trap, Cast Iron, Parallel Pipe Connections

The Spirax Sarco float and thermostatic (F&T) steam trap, model FT-30, features a 2" trap connection in a same side parallel configuration. This pattern allows steam to enter from one side of the trap, and the condensate to discharge from the same side of the trap. FT Series F&T traps are continuous drainage and are designed for low, medium, and high pressure steam mains and come standard with stainless steel internal parts. The FT-30 is cast iron and has a 30 psi maximum operating pressure.

They are recommended for modulating pressures where widely varying loads are present and are a good choice for their ability to vent air at very low pressures, handle start up air loads, and operate against back pressure.

Part# 57064

DETAILS/SPECIFICTAIONS:

Brand: Spirax Sarco

Steam Trap Type: Float and Thermostatic (FT)

Model: FT-30 (30 PSI)

Steam Trap Connection Size: 2"

Max Pressure: 30 psi

Part Number: 57064

Body Material: Cast Iron

Steam Trap Mounting: Same Side/ Front

Typical Applications:
All process equipment, particularly when
controlled by modulating temperature control valves; unit heaters, air heating coils,
heat exchangers and steam main drip stations.

Item Features

• 450 deg F Maximum operating temperature
• 125 psig at 450 deg F Maximum allowable pressure
• 450 deg F at 0 to 125 psig Maximum allowable temperature
• Parallel piping configuration
• Stainless steel internals
