Spirax Sarco VB 14 1/2" NPT Vacuum Breaker Brass #0190190
Spirax Sarco VB 14 1/2" NPT Vacuum Breaker Brass #0190190
- SKU 0190190
- in stock
SALE ITEM
Backordered
Regular price
$368.50
Sale price
$368.50
Regular price
Unit price
per
Couldn't load pickup availability
Product Information
IN STOCK: USUALLY SHIPS WITHIN 1-2 DAYS
OUT OF STOCK: APPROX 2-3 WEEKS

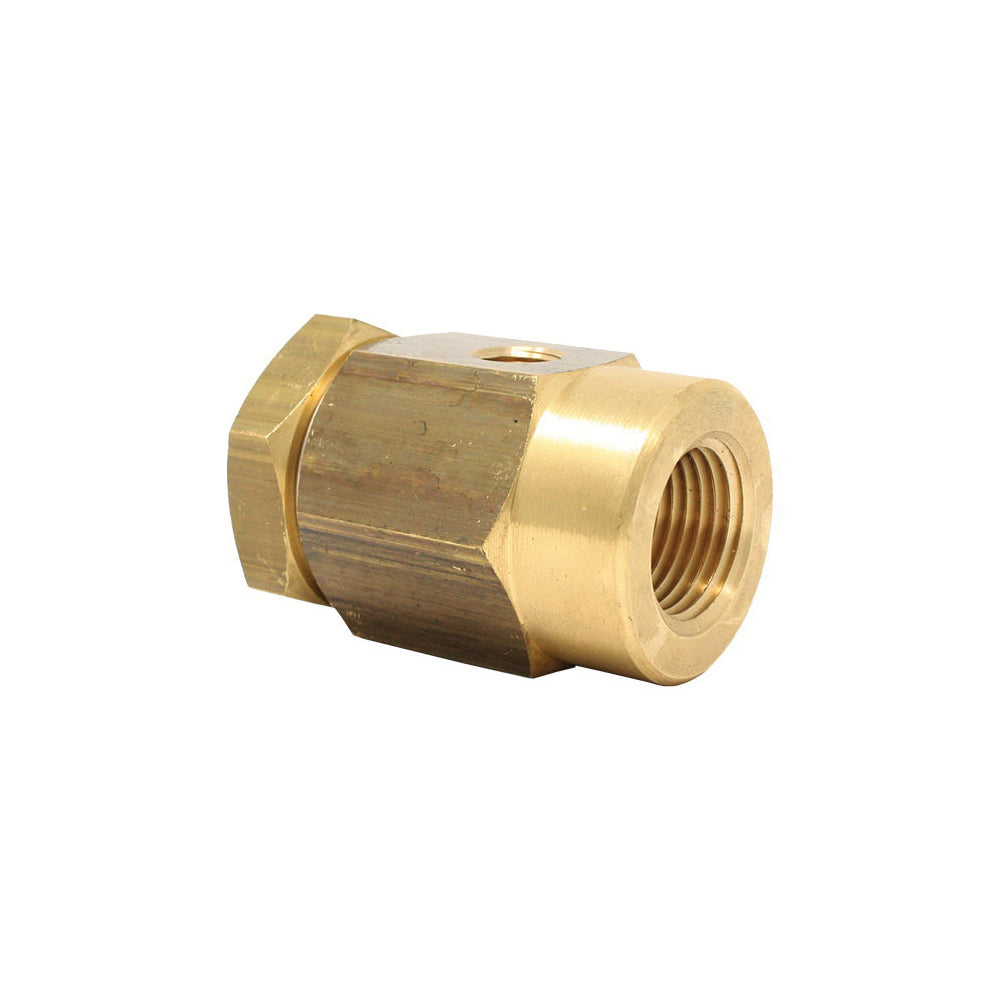

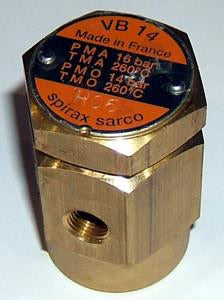

1/2" VB14 NPT Vacuum Breaker Brass
The VB14 is a small purpose designed vacuum breaker for general purpose applications on condensing vapour (steam) or liquid systems.
Spirax Sarco Vacuum Breaker, 1/2 x 1/8 in Nominal, NPT, 210 psig, 500 deg F, Brass Body, 1.5 in L x 2.2 in H
Part#0190190
Specifications
Brand: Spirax Sarco
Model: VB14
Weight: 0.8 lbs
Nominal Size: 1/2"
Body Material: Brass
Connection Type: FNPT
Max Pressure: 210 psi WSP - Recommended best for steam systems 15psi and below. For 15 psi and above use VB21
Temperature Rating: 500 deg F
Application: For Used on Steam Inlet to Air Coils, Heat Exchangers, Spurge Systems, Jacketed Kettles, Boiler Feed Water Tanks, Chilled Water Lines and Liquid Process Lines and All of Which at One Time or Another Generate Vacuum Conditions Which Must be Relieved to Allow Proper System Operation
Standards and Approvals: Complies with the Requirements of the European Pressure Equipment Directive 97/23/EC | CU ZN 39 PB2 Brass Body | AISI 304 Stainless Steel Gasket | CU ZN 39 PB2 Brass Cap | Z 100 CD 17 Stainless Steel Valve Check Ball | Z10 CN 18 08 Stainless Steel Valve Seat
Specifications
Height (in)
2.2
Width (in)
1.3
Depth (in)
1.3
Weight (lbs.)
0.8 lb
